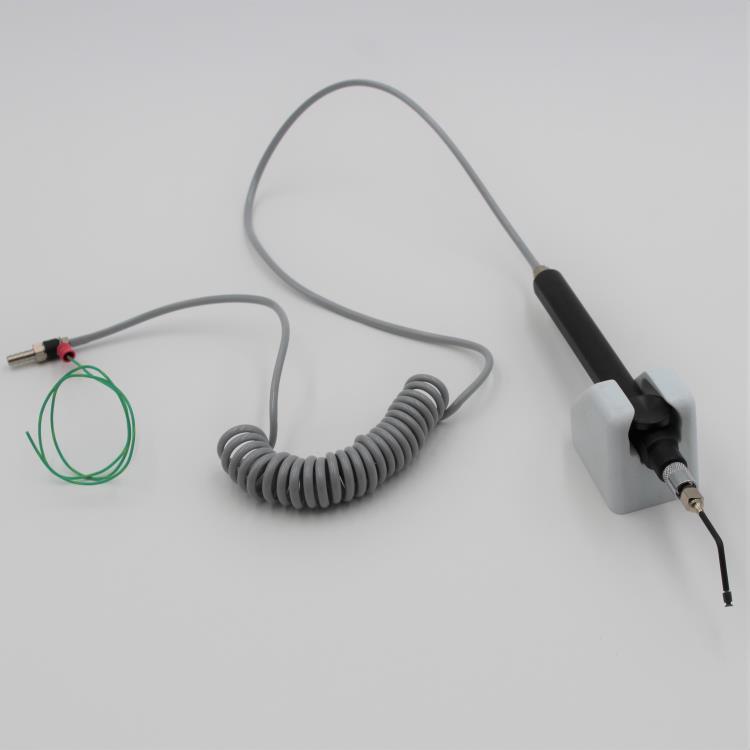

VWSET-F Small Die and Package Vacuum Wand Set

Product Code: VWS-F

A H-Square standard, the VWSET-F vacuum wand set used for handling small device substrates, die, packages, and optics 4-15mm in size. Set includes everything needed to start handling wafers safely using house vacuum. H-Square recommends house vacuum greater than 22" Hg for best performance. Designed for ISO Class 5 (FS209E Class 10); Antistatic construction, chemical resistant; This is a set; no part substitutions.

Set includes:

VCAS125 (0.12" diameter)Vinyl Vacuum Cup

DPNOAS2LA Normally Open Vacuum Wand

HSU Vacuum Wand Shut-off Holder

CTA06 Adapter Assembly for grounding coil cord

CC4SDS ESD Coiled Tubing

BCHN-16 Hub Needle

**Requires external vacuum source

Specification

Wafer Size Die

Dimensions 9" x 8"

Weight 0.5 lb
