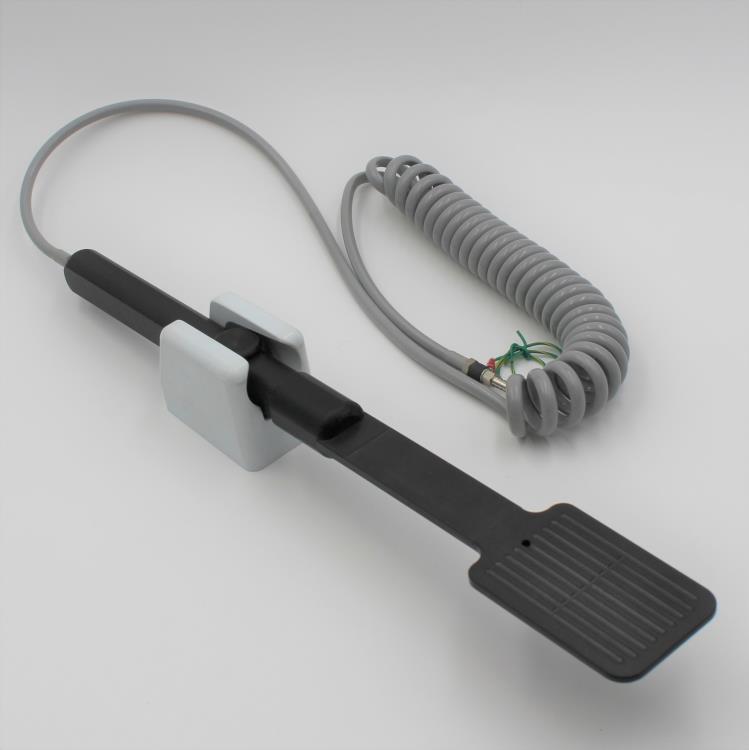

VWSET-A 300mm Wafer Vacuum Wand Set

A H-Square standard, the VWSET-A vacuum wand set used for handling 300mm wafers. Set includes everything needed to start handling wafers safely using house vacuum. H-Square recommends house vacuum greater than 22" Hg for best performance. Designed for ISO Class 3 (FS209E Class 1)

Antistatic construction, chemical resistant; This is a fixed set; no part substitutions.

Set includes:

T3PKAS1 ESD PEEK Tip

NO3AS1 Normally Open Vacuum Wand

HSU3 Vacuum Wand Shut-off Holder

CTA12 Adapter Assembly for grounding coil cord

CC11SDS ESD Coiled Tubing

**Requires external vacuum source

Vacuum tip has a 3.3in2 area vacuum pocket.  When used with 22"Hg vacuum source, has a 35 lb theoretical holding capacity.

Wafer Size 300

Dimensions 10" x 10"

Weight 0.8 lb

Tip dimensions               8.2” x 2.1”

Vacuum area          3.3”

Theoretical vacuum area        35.5 lbs
