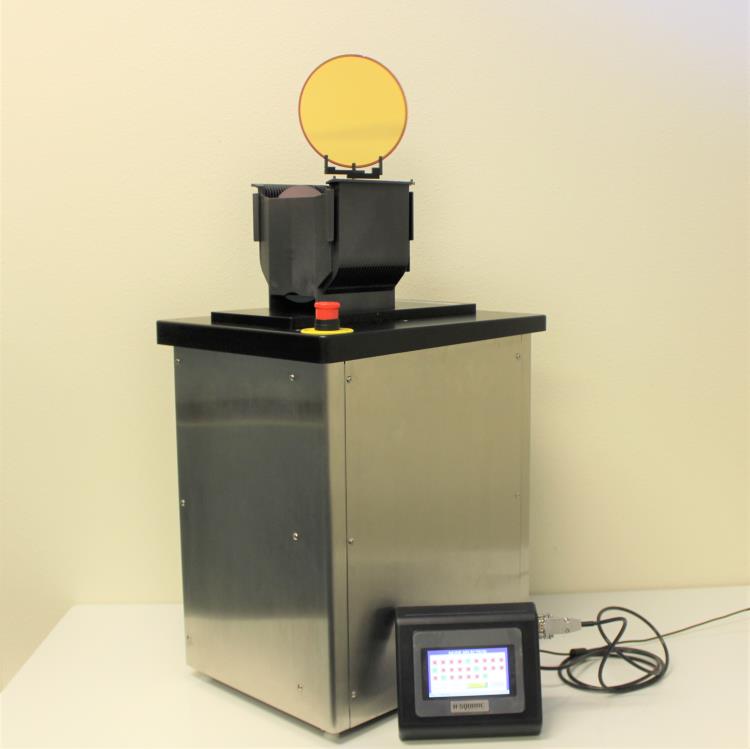

WPR Individual Wafer Presenter

Automatic single-wafer presenter designed to present a wafer to an operator for inspection or removal from the cassette and for macro inspection applications. The WPR can be used for wafer flipping (inverting) the wafer 180° degrees for backside applications. Table in-set, or table top. The WPR features a rotating lift blade, allowing full front side and backside wafer inspection. Designed for ISO Class 3 (FS209E Class 1); Antistatic construction; Specify cassette model number with order.

Macro inspection applications

180° wafer fl ipping (inverting)  for backside applications

360° wafer rotation for both  front and backside applications

The WPR Features:

• A rotating lift blade allowing full front side and backside wafer inspection from one operator position

Wafer Size                        76, 100, 150, 200

Power Requirements      24VDC 3 Amps 120VAC to 24VDC Power Supply Sold separately

Dimensions                       16"W x 14"L x 21"H

Weight                               50 lbs

Wafer comb                          ESD Peek
