Bliss Mask and Wafer Inspection Station

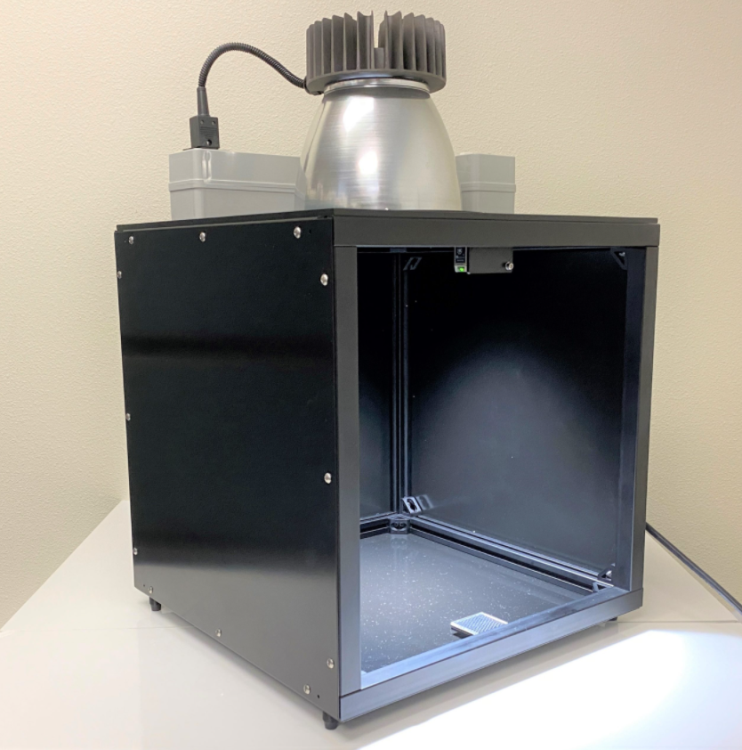

Mask Inspection Station. The Tabletop automatic on/off motion detection mask inspection station is a bright light station for macro examination of reticles, masks or wafers.Used with H-Square mask picks this allows operators to see the entire surface of the mask under bright light conditions.

Light absorbing matte black anodized finish 18” x 18” x 18” box with adjustable pure white LED bulb. Unit is supplied with optional yellow filter.

How it works:

A tabletop macro-inspection station utilizes a bright white 3995 Lumens programmable LED light to detect subtle, low-contrast defects on complex assemblies, like semiconductor wafers, photomasks, and opto-electronic assemblies. The long-life 50,000-hour rated light source only illuminates the inspection area when operator motion is detected

Specifications:

1. Color temperature: 4000
2. Lumens: 3995
3. Equivalent Wattage: 42
4. Input Current: 0.33 amps
5. Input voltage: 120 VAC 50/60 Hz
6. Dimmable: Yes
7. Energy Star: Yes
8. Average Life: 50000

Wafer Size 76, 100, 150, 200, 300

Power Requirements 120VAC / 1 amp

Weight 25 lbs

Opening           16" x 16"

Cleanroom compatibility      ISO Class 3
