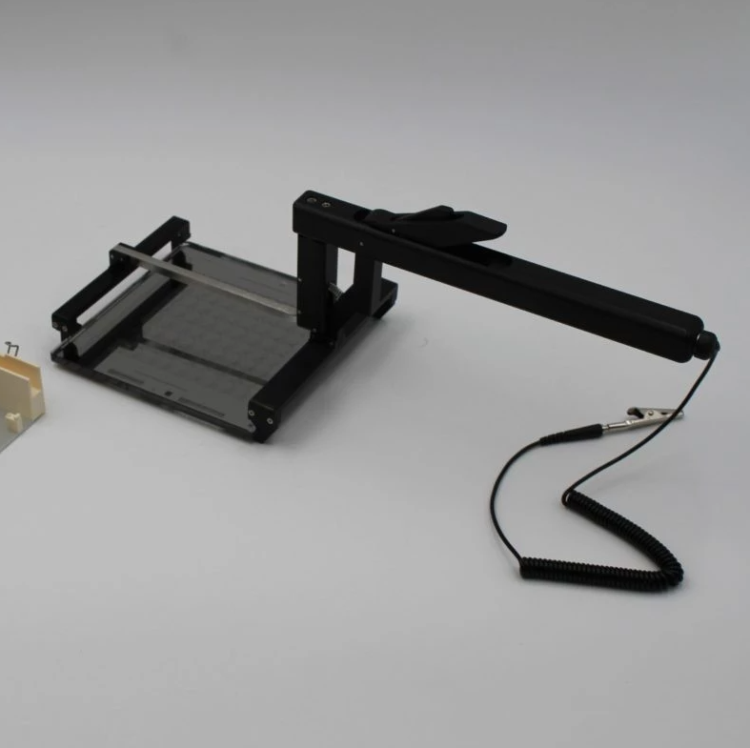

MPF Nikon Cartridge Photomask Pick

Product Code: MPF

Special 4-gripper horizontal antistatic photomask picks for handling 6” reticles to / from a Nikon mask cartridge box. Ordering part number is based on pellicle size and location - grippers are positioned to avoid contact with pellicle frame. (typically loaded into the Nikon cartridge pellicle down). Designed for ISO Class 3 (FS209E Class 1) antistatic construction, chemical resistant Tangential edge-grip only; no front or back face of chrome or pellicle contact. . Design features a locking latch trigger to safeguard the premature release of a valuable photomask

Minimal moving parts for simple cleaning and low particle generation.

Lightweight, economical and easy-to-use with trigger-type gripping mechanism.

V-type grippers allow masks with beveled edges to be loaded from flat surfaces.

Antistatic construction for ESD-safety control of the chrome architecture.

Wafer Size 5 in, 6 in

Mask size:

5” x 5” x 0.09”

6” x 6” x 0.25”

Cleanroom capability ISO Class 3

Weight Supports up to 2lbs

I-rings Flueoroelastomer

Gripper, handle & trigger ESD Polypro
