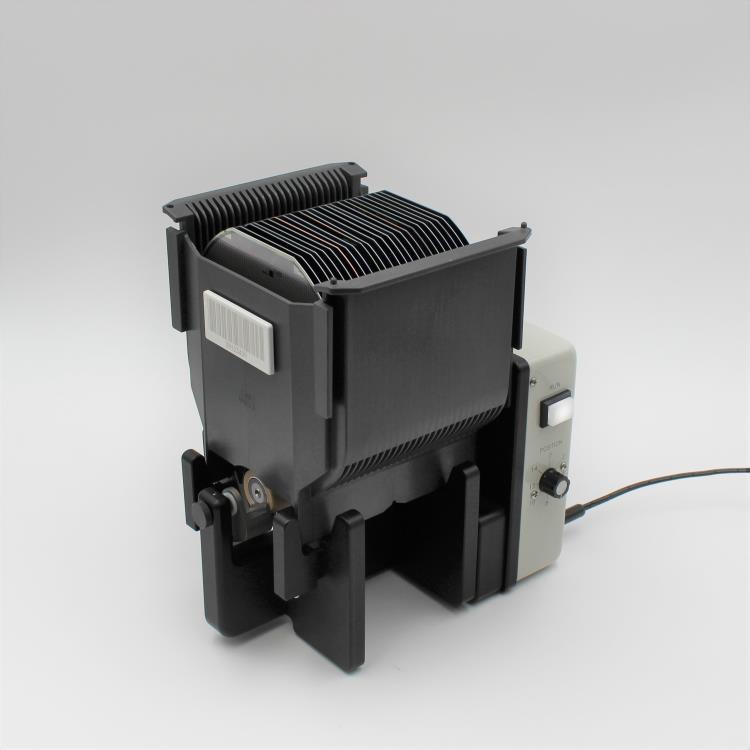

AFEZ Automatic Flat Aligner

Tabletop automatic EZ Guide™ aligner bulk aligns wafer flats to +/- 1° accuracy. 16-position flat location switch allows for positioning at common industry final flat locations. ESD-safety controlled with static dissipative materials grounding both the wafer and cassette. Features quick-disconnect roller assembly for simple maintenance and cleaning. Designed for ISO Class 3 (FS209E Class 1); Antistatic construction; Specify cassette model number(s) with order.

Wafer Size  76, 100, 125, 150, 200

Power Requirements 12VDC/2 Amps 120VAC/12VDC power supply included.

Throughput 100 Cassettes per hour

Dimensions 7" x 11" x 7"

Weight           4 lbs

Roller material        SD Polyurethane,  60 durometer
