BELLMAT

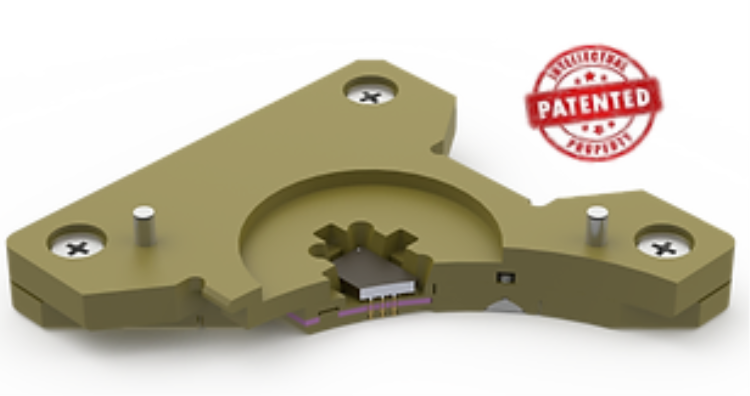

Bellmat family of high-performance contacting technology

The Bellmat family of high-performance contacting technology was developed and validated for initial lab characterization through high-volume production test environments. The proprietary contacting technology is a unique combination of both rigid and cantilever style contacting that provides a very short, “straight-thru” signal path with excellent signal integrity(-1dB@ 63GHz).

Features and benefits:

Springless Design

• High frequency response, Controlled inductance/impedance, Application friendly

Rigid Body Contact

• Low temperature impact, Insurance of contact, Streamline relay, High signal integrity and bandwidth

Unique Housing Construction

• Rigid embodiment, Performance consistency

Honey Comb Elastomer Design

• Controlled force distribution, Disposable cartridge


Advanced Contact Finishing - 𝑨𝑪𝑭+

• Low to High frequency applications. Longer MTBA, MTBF, Sustainability of specification

Oxide Layer Breaker Tip Design

• Low resistance barrier, Less cleaning frequency, Longer MTBA/MTBR
